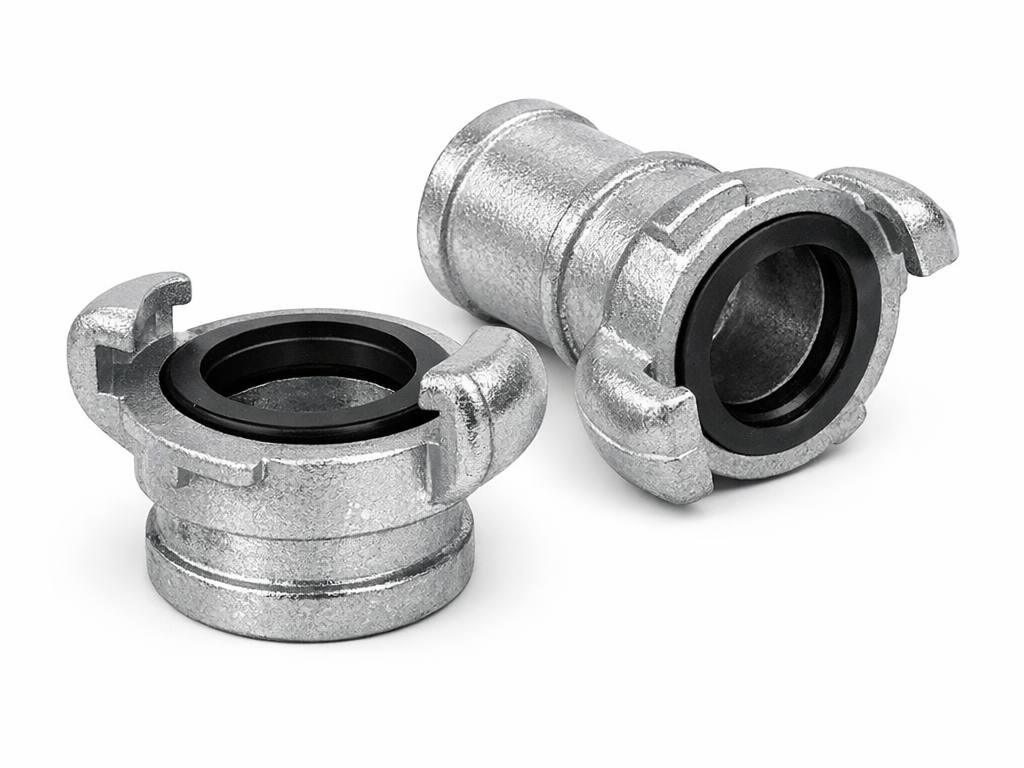

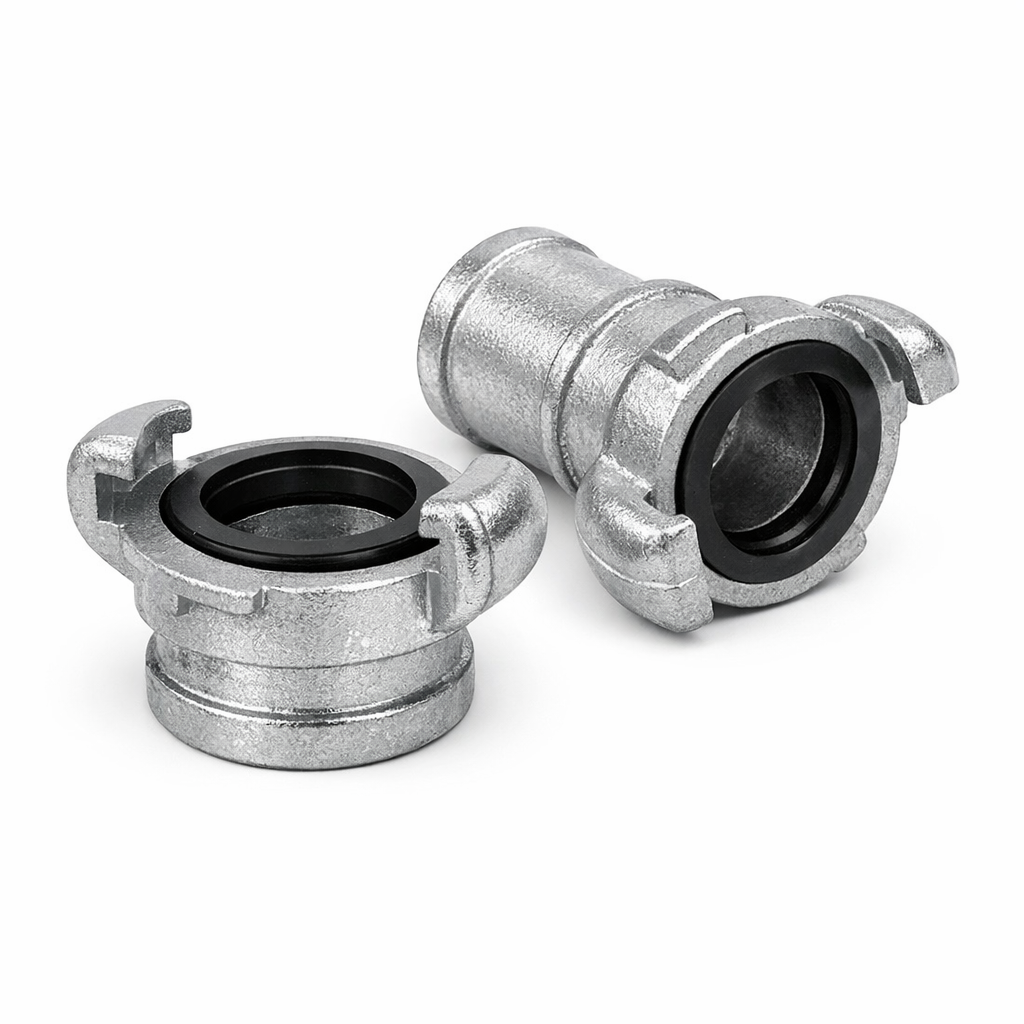

Chicago Coupling

What Are Chicago Couplings?

Chicago couplings — also known as Higgins couplings or Chicago fittings — are heavy-duty, lug-and-groove quick-connect hose couplings widely used across industrial sites. Designed for fast, tool-free connections, they feature a twist-lock mechanism in which the male and female halves are engaged by aligning the lugs with the grooves and rotating a quarter-turn to lock securely in place. This robust design ensures a reliable, leak-resistant seal under demanding operating conditions.

How the Lug-and-Groove Mechanism Works

The coupling consists of a male end (plug) and a female end (socket). The male end carries raised lugs that slide into corresponding grooves on the female body. A quarter-turn rotation locks the lugs behind the groove shoulders, creating a positive mechanical connection. OSHA-compliant safety locking lugs prevent accidental disconnection under pressure, making the system safe for pressurised hose applications.

Available Configurations

Chicago couplings are available in two primary configurations to suit different installation requirements:

• Straight — for inline hose-to-hose or hose-to-equipment connections
• Elbow — for 90° directional changes, reducing hose stress and improving routing in confined spaces

Materials

Couplings are available in three body materials to match the demands of the application and the media being conveyed:

• Aluminium — lightweight and corrosion-resistant; ideal for general compressed air and water service
• Ductile Iron — high strength and impact resistance; suited to heavy-duty industrial and slurry applications
• Stainless Steel — superior corrosion resistance; recommended for aggressive media, washdown environments, and food-grade or chemical service

Size Range

Chicago couplings are available in sizes from 2" through 6", covering the full range of industrial hose diameters commonly used in compressed air distribution, water transfer, and slurry handling systems.

Applications

Chicago couplings are a standard fitting across a broad range of industrial applications:

• Compressed air distribution on construction and industrial sites
• Water transfer and dewatering operations
• Slurry and abrasive media handling in mining and civil works
• General industrial hose connections requiring frequent make-and-break cycles

Safety & Compliance

All Chicago couplings in this range feature OSHA-compliant safety locking lugs. These lugs prevent the coupling from being accidentally disconnected while the hose is under pressure, in accordance with OSHA 29 CFR 1926.302(b)(7) requirements for pneumatic hose safety. Always depressurise the hose before disconnecting.

Installation & Compatibility

Chicago couplings are universally interchangeable across manufacturers — any male Chicago fitting will mate with any female Chicago fitting of the same size, regardless of brand or material. Couplings are typically attached to hose ends using clamps or crimped ferrules. Ensure the hose inner diameter matches the coupling size, and inspect lugs and sealing faces regularly for wear or damage to maintain a safe, leak-free connection.
