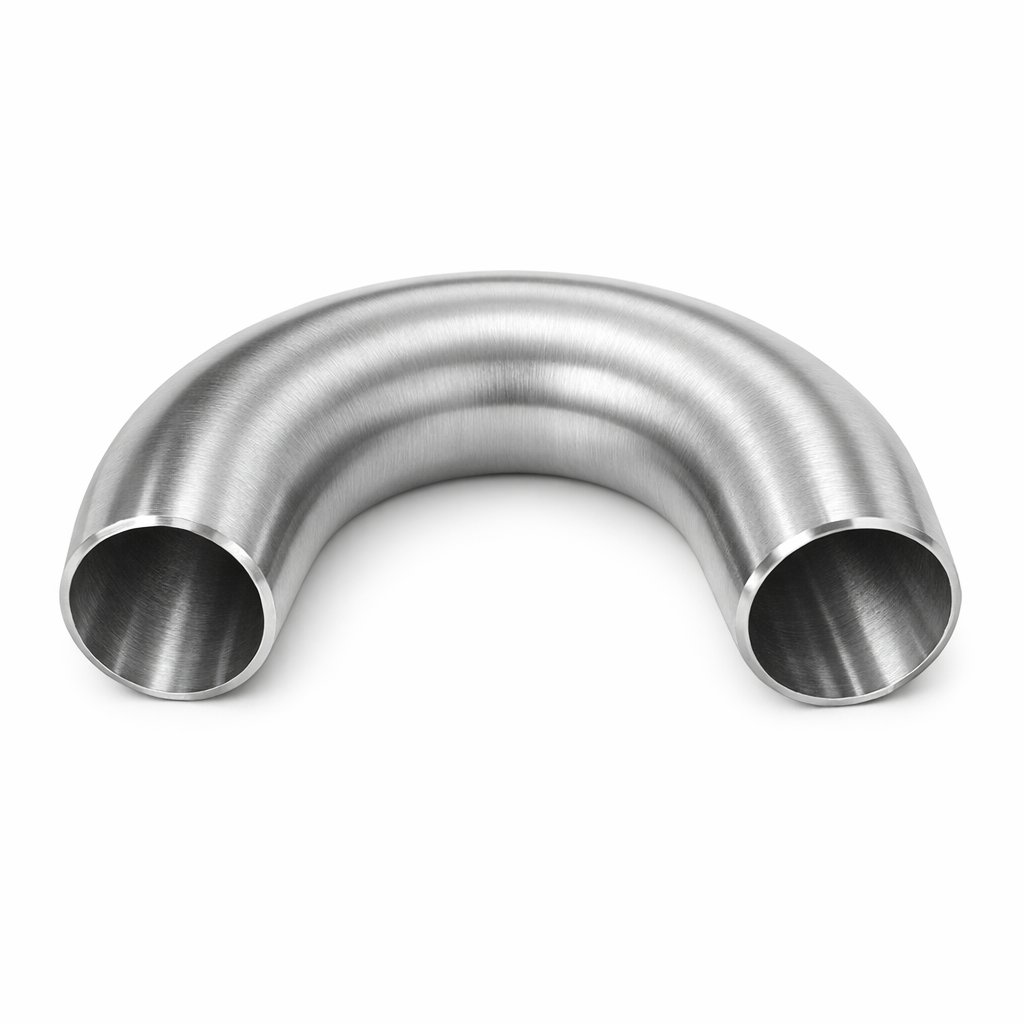

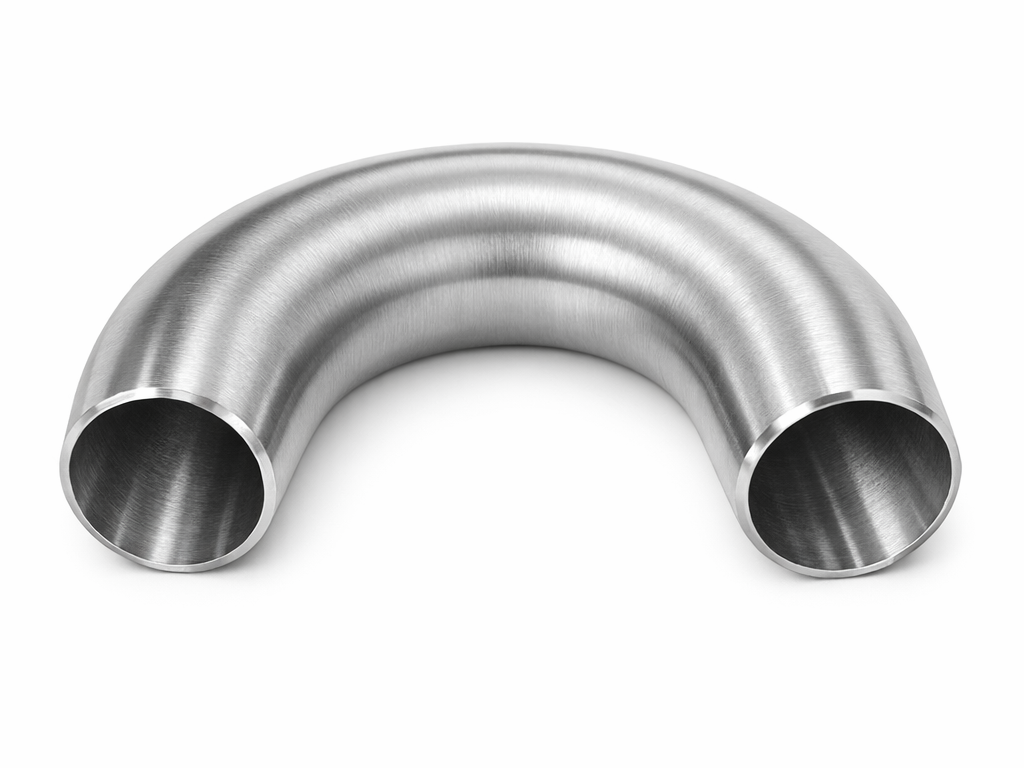

Elbow

Pipe elbows are fittings used to change the direction of flow in a piping system. Available in 90° and 45° configurations, they are essential components in process pipelines across oil & gas, chemical processing, power generation, and utility infrastructure. Elbows are manufactured to precise dimensional and pressure standards, ensuring reliable performance in demanding service conditions.

Materials

Elbows are available in Carbon Steel (CS) for general-purpose and high-pressure applications, and in Stainless Steel grades SS 304 and SS 316 for corrosion-resistant service. SS 316 is particularly suited for aggressive chemical environments and marine applications due to its molybdenum content, while SS 304 offers excellent corrosion resistance for a wide range of process fluids.

Radius Types

Long Radius (LR) – 1.5D: The centerline radius is 1.5 times the nominal pipe diameter. Long radius elbows produce lower pressure drop and reduced turbulence, making them the preferred choice for most process piping applications.

Short Radius (SR) – 1D: The centerline radius equals the nominal pipe diameter. Short radius elbows are used where space constraints prevent the use of long radius fittings, accepting a higher pressure drop in exchange for a more compact installation.

End Types

Butt-Weld (BW): Beveled pipe ends are welded directly to the pipe, providing a strong, leak-free joint suitable for high-pressure and high-temperature service. Manufactured to ASME B16.9.

Socket Weld (SW): The pipe is inserted into a recessed socket and fillet-welded around the outside. Socket weld elbows are used for smaller diameter, high-pressure piping. Manufactured to ASME B16.11.

Size Range

Elbows are available across a broad size range from 1/4" to 72" nominal pipe size (NPS), covering instrumentation lines through large-bore transmission and process headers.

Applicable Standards

Butt-weld elbows conform to ASME B16.9 (Factory-Made Wrought Buttwelding Fittings), while socket weld elbows conform to ASME B16.11 (Forged Fittings, Socket-Welding and Threaded). These standards govern dimensional tolerances, pressure ratings, and material requirements.

Typical Applications

Pipe elbows are widely used across industries wherever a change in flow direction is required:

• Oil & Gas: upstream gathering lines, midstream transmission, downstream refinery process piping
• Chemical & Petrochemical: corrosive fluid handling, reactor feed and product lines
• Utility Systems: water treatment, steam distribution, HVAC, and fire protection networks
• Power Generation: boiler feed, condensate return, and cooling water systems
